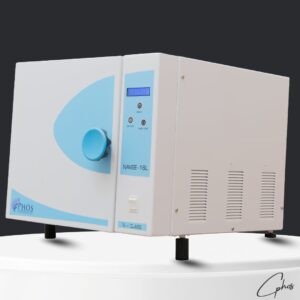

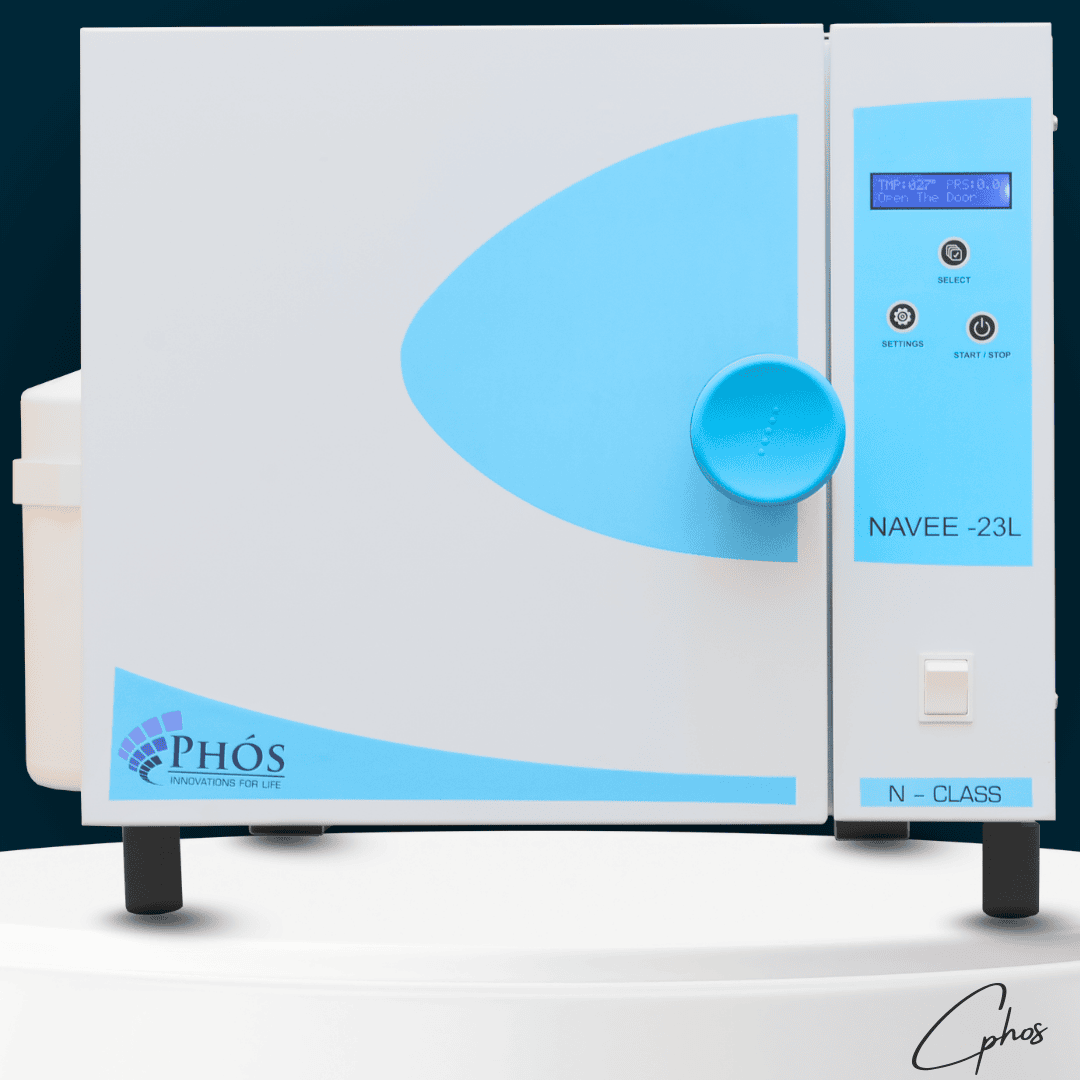

The CPHOS Navee 23L N-Class Autoclave is a high-capacity tabletop sterilizer designed for clinics and labs that need efficient, rapid sterilization of solid, unwrapped instruments. Manufactured with S316 medical-grade stainless steel and protected by a durable ceramic heater blanket, it ensures performance, hygiene, and reliability at scale.
Key Features:
-
- Chamber: S316 Medical Grade Stainless Steel
- Aluminium Instrument Tray
- Adopted European N-Class Standards (with 2-purge cycle)
- High-performance Ceramic Blanket (1200°C resistivity)
- ARM-Based Advanced Microcontroller System
- Cycle Counter & User-Friendly Display
- Dual Door Safety Locking System
- Efficient and Fast Sterilization
Technical Specifications – 23 Litres
Specification |
Value |
|---|---|
| Chamber Capacity | 23 Litres |
| Product Size (W × H × D) | 450mm × 368mm × 680mm |
| Chamber Diameter | 236mm |
| Chamber Length | 450mm |
| Base Size (W × H) | 478mm × 420mm |
| Max Load (Non-Vacuum) | 8 kg |
| Instrument Rack Size (L×W×H) | 13.6″ × 7.0″ × 6.5″ |
| Operating Temperature | 121°C / 134°C |
| Operating Pressure | 0.2 – 2.45 bar |
| Voltage / Power | 230V / 1800W |
| Frequency | 50 – 60 Hz |
| Band Heater Isolation | Yes |
| Noise Level @ 1m | ≤ 62.2 dB(A) |
| Materials (Vessel / Lid / Tray) | SS 316 / SS 316 / Aluminium 6061 |
Pre-Programmed Sterilization Cycles
Mode |
Load Type |
Sterilization Time |
Dry Time |
Total Time |
|---|---|---|---|---|
| 121 FAST | Unwrapped instruments | 18 minutes | 10 minutes | 28 minutes |
| 121 WRAPPED | Wrapped and porous instruments | 18 minutes | 20 minutes | 38 minutes |
| 134 FAST | Unwrapped instruments | 5 minutes | 10 minutes | 25 minutes |
| 134 WRAPPED | Wrapped and porous instruments | 5 minutes | 25 minutes | 30 minutes |
N-Class Sterilization Cycle Chart
The sterilization process includes:
Air Removal – via 2-purge displacement (no vacuum)
Steam Injection – Direct pressurization
Sterilization Phase
Exhaust & Drying Phase
